Saturday, June 23, 2012

Learning from Swedish Home Building - Part 4

Today we published a new video in our series about Learning from Swedish Home Building, this time about the Rockford Swedish Standard House that I visited back in March, 2012. This house has a very interesting background story. Its the product of a circumstances that probably had a one in a billion chance of aligning with the research Scott Hedges and I were doing on Swedish House building techniques. But there it was, right in the heartland of the USA, somebody was building a Swedish house.

This project will continue in the Fall of 2012 when the schools' academic years begin again, and we will follow up with more information about its progress then. But in the meantime, this video introduction to the project includes more footage I shot when I was there.

This video piece is about a house in Rockford Illinois being built by a team of American High School Students and visiting Swedish Vocational School Students. They are building a Swedish wall system using American materials that is very similar to the prototypes laid out in our USA New Wall. The USA New Wall is our recommendation for applying Swedish building techniques to American home building.

The walls in this Rockford house will have approximately R35 worth of insulation in them when done. Two layers of 1.5" stone wool at approximately R6 each, and the main stud space with 5.5" or stone wool at R23. The furred layering on both sides will reduce thermal bridging and improve the averaged R value performance of the wall.

This Project is the result of a unique economic development relationship between Rockford, and Swedish sister city Lidköping. It is being built as an effort of the Swedish American Foundation of the Rockford Swedish American Health System which is engaged in urban renewal in the neighborhoods surrounding the hospital. The Swedish American Foundation sponsors teams of students from the Construction Program at De la Gardiegymnasiet, a trade school from Lidköping. Together with the students from Rockford East High School, and under the coordination of East High School Instructor Matt Walling the house is constructed on a site a few blocks from the hospital.

We have more background on this project here including a detailed analysis of the wall system they are using:
http://blog.lamidesign.com/2012/03/all-about-swedish-standard-house.html
http://blog.lamidesign.com/2012/03/visiting-most-important-green-house-in.html

As recommended for the USA New Wall, the Swedish Standard house shown in this video will use use Stone Wool insulation rather than fiberglass. You can read a detailed article about why we prefer Stone Wool on our blog:
http://blog.lamidesign.com/2012/01/what-you-don-know-about-mineral-wool.html

You can read the entire Letters from Sweden series on our blog which tracks our research and applications of into blog post's into Swedish House building, and its application in the US:
http://blog.lamidesign.com/search/label/letters%20from%20Sweden

The USA New Wall, and Swedish Platform Framing are an outgrowth of our research into Swedish building practices. Again, you can find details of the USA New Wall here:
http://blog.lamidesign.com/p/usa-new-wall.html

And Swedish Platform Framing here:
http://blog.lamidesign.com/p/swedish-platform-framing.html

If you need assistance implementing the USA New Wall or Swedish Platform Framing in your projects, we are here to help. Please contact us.

Continue reading "Learning from Swedish Home Building - Part 4"

Tuesday, June 19, 2012

Maine Plat House - making progress

I received some new photos of the progress of the Maine Plat House, and for the first time some short videos of a walking tour - short though! The era of smart phones is here when customers building start sending in videos!

The videos give us that rare chance to move through 3d space and get a fuller sense of the house. It also gives you a glimpse out of the windows and some idea of why the house is facing in the direction it is.

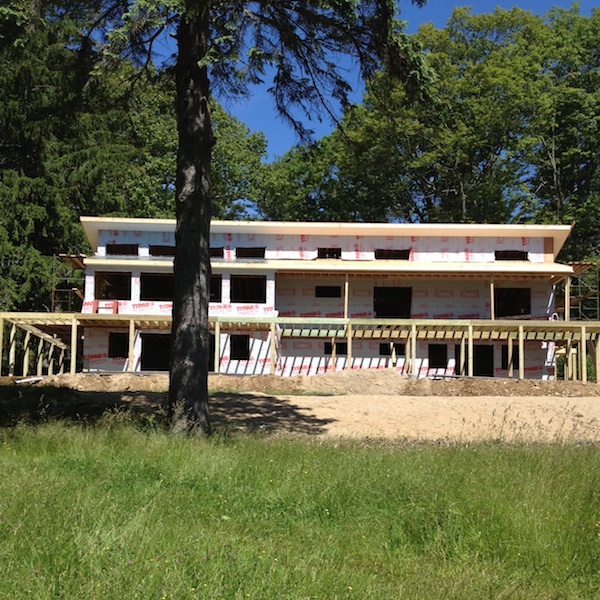

Above - the back of the house which overlooks their nice view. Click through to see the videos and a slide show of the new photos.

Continue reading "Maine Plat House - making progress"

Friday, June 15, 2012

Learning from Swedish Home Building - Part 3

Its friday so it must be time to show the latest video in our Series about building high performance walls like the Swedes do. In our first video we explained why it makes sense to look to Sweden for a direction for our house building techniques. The second video we reviewed the Good/Better/Best model for easing builders into high performance wall building. Today we look at Swedish Platform Building, the best advancement in house building since the Western Platform Frame. Wow, is our house nerd showing here or what?

I've been trying to keep these videos short, and make them just an introduction to the ideas presented. But for the Swedish Platform Frame I was not able to do a short video. What happened was I ended up making a 3d model of the prototypical Swedish Platform Frame, and it was obvious that this was such a good way to explain this that I decided to just go ahead a make a detailed description of the framing system. So it is almost 20 minutes long - my apologies. Stop at the restroom, get a large popcorn, turn off your cell phones, note the exits, and prep yourself for the Director's Cut of the Swedish Platform Frame...


This video piece is about how Sweden has modified the Western Platform Framing method for better energy performance in residential construction. We call this modified framing method Swedish Platform Framing.

This video is quite long, and we apologize about that. If we figure out how to say all this in a shorter video we'll produce a new version. In this video we make a very breif review of the history of stud framing systems - Balloon Framing and Western Platform Framing. Then we proceed to look in detail at the differences between Western and Swedish Platform framing.

Swedish Platform Framing is explained in much more detail on our web site, and you can read that on this page:

http://blog.lamidesign.com/p/swedish-platform-framing-info.html

As with the USA New Wall, the walls shown in this video use Stone Wool insulation rather than fiberglass. We mention in the video that this is because Stone Wool offers higher insulation values - R23 for 2x6 stud spaces, and R30 for 2x8 stud spaces. We also mention that it allows for better installations. You can read a detailed article about why this is so on our blog:

http://blog.lamidesign.com/2012/01/what-you-don-know-about-mineral-wool.html

Not covered in detail in the video is the Vapor Retarder membrane. We prefer a Variable Permeability Vapor Retarder membrane. There are several sources for this unique vapor retarder, notably Certainteed's Membrane:

http://www.certainteed.com/products/insulation/mold-prevention/317391

And Intello Plus, and DB+ by ProClima:

http://foursevenfive.com/product-category/air-sealing-system/interior-membranes-air-vapor-control/

You can read the entire Letters from Sweden series by clicking on the respective link under the the above blog post's title's.

The USA New Wall, and Swedish Platform Framing are an outgrowth of our research into Swedish building practices. Again, you can find details of the USA New Wall here:

http://blog.lamidesign.com/p/usa-new-wall-info.html

And again Swedish Platform Framing here:

http://blog.lamidesign.com/p/swedish-platform-framing-info.html

If you need assistance implementing the USA New Wall or Swedish Platform Framing in your projects, we are here to help. Please contact us. Continue reading "Learning from Swedish Home Building - Part 3"

Friday, June 08, 2012

Learning from Swedish Home Building - Part 2

Time to look at Part 2 of our video series on building Nordic style walls in the US. Today we look at the USA New Wall, and its Good, Better, Best versions which make it easier for American builders to step into high performance building.

In the first video, you may recall, we briefly reviewed why we would look to Sweden to inspire the way we build houses in the US. This next video shows how we can apply the lessons from their wall construction to building here in the US. We offer these improvements in easy to achieve steps. First get familiar with better insulation, then introduce a wiring space to your walls to make it easier to keep the house air tight, then complete the picture with an exterior insulation layer that makes a good thermal break for the wall framing. Here is Part 2:


This video piece shows how to go about building Nordic Style walls for residential construction, like the walls used in Sweden. We call these American versions of Nordic walls the USA New Wall.

The wall systems have been broken down into Good/Better/Best subsets in order to offer builders a gradual path to increasing the performance of the walls they build. The video starts off with a detailed look at a typical Swedish wall, and then walks you through the Good, Better, and Best versions of the USA New Wall.

The USA New Wall is explained in much more detail on our web site, and you can read that on this page:

http://blog.lamidesign.com/p/usa-new-wall-info.html

You will note that all of the wall variations feature Stone Wool insulation rather than fiberglass. We mention in the video that this is because Stone Wool offers higher insulation values - R23 for 2x6 stud spaces, and R30 for 2x8 stud spaces. We also mention that it allows for better installations. You can read a detailed article about why this is so on our blog:

http://blog.lamidesign.com/2012/01/what-you-don-know-about-mineral-wool.html

Also mentioned in the video is the Variable Permeability Vapor Retarder membrane. There are several sources for this unique vapor retarder, notably Certainteed's Membrane:

http://www.certainteed.com/products/insulation/mold-prevention/317391

And Intello Plus, and DB+ by ProClima:

http://foursevenfive.com/product-category/air-sealing-system/interior-membranes-air-vapor-control/

You can read the entire Letters from Sweden series on the blog.

The USA New Wall, and Swedish Platform Framing are an outgrowth of our research into Swedish building practices. Again, you can find details of the USA New Wall here:

http://blog.lamidesign.com/p/usa-new-wall-info.html

And Swedish Platform Framing here:

http://blog.lamidesign.com/p/swedish-platform-framing-info.html

If you need assistance implementing the USA New Wall or Swedish Platform Framing in your projects, we are here to help. Please contact us.

Continue reading "Learning from Swedish Home Building - Part 2"

Saturday, June 02, 2012

Learning from Swedish Home Building - A video series

I've decided to make a series of short videos about our research into Swedish home building, and my recommendations for how to apply the lessons here. Namely the USA New Wall, and Swedish Platform Framing.

I don't love being in front of the camera - eek, have you ever done this? But I think its a great way to reach more people. If you want to show these ideas to somebody, they can watch a short video to get a good introduction, rather than reading a long web page, or many blog entries.

So in that spirit we present the first video which is about why we would look to Sweden for a model for improving the performance of our homes in the US.


Notes:

This video piece explains the premise of why we in the United States can benefit from adopting house building techniques developed in Sweden. Specifically this video series will focus on residential wall systems.

The video touches on many ideas which are explained in greater depth in entries to the LamiDesign Modern House Plan blog, in a series of posts tagged Letters from Sweden. Here are links to some specific topics touched on in the video:

This post "Letters from Sweden - Europe is different, Sweden is not, sort of.." elaborates on the similarities and differences between the housing industries in both countries:

http://blog.lamidesign.com/2008/01/letters-from-sweden-europe-is-different.html

The book "Coming in From the Cold" makes a detailed account of Sweden's response to the 1970's oil crisis. This book was written in the 1980s when it became apparent to scientists that Sweden was using much less energy per household than the US. This was 25 years ago. Sweden has gotten even better at it since then. US, not so much. We describe the book here:

http://blog.lamidesign.com/2010/11/coming-in-from-cold-story-behind-story.html

We also made a fairly detailed examination of the typical construction of a Swedish residential wall. This will expand on the very brief description in the video, and you can find that here:

http://blog.lamidesign.com/2010/12/letters-from-sweden-closer-look-at_31.html

You read the entire Letters from Sweden series by clicking on the respective link under the blog post title.

The USA New Wall, and Swedish Platform Framing are an outgrowth of this research. You can find details of the USA New Wall here:

http://blog.lamidesign.com/p/usa-new-wall-info.html

And Swedish Platform Framing here:

http://blog.lamidesign.com/p/swedish-platform-framing-info.html

If you need assistance implementing the USA New Wall or Swedish Platform Framing in your projects, we are here to help. Please contact us.

Continue reading "Learning from Swedish Home Building - A video series"
